C# Library for using xiaomi/aqara gateways in your automation scenarious

This library provides simple and flexible C# API for Xiaomi/Aqara gateways and smart devices.

Supported gateways

Gateway	Market Model	Model
Xiaomi Gateway 2 China	DGNWG02LM	lumi.gateway.v3
Multimode Gateway	ZNDMWG03LM	lumi.gateway.mgl03
Multimode Gateway 2 Global	ZNDMWG04LM	lumi.gateway.mgl001
Multimode Gateway 2 China	DMWG03LM	lumi.gateway.mcn001
Aqara Hub E1 China	ZHWG16LM	lumi.gateway.aqcn02

Supported wifi devices

Device	Market Model	Model
Xiaomi Mijia Smart Sterilization	MJJSQ03DY	zhimi.humidifier.v1
Xiaomi Mi Robot Vacuum Cleaner	SDJQR02RR	rockrobo.vacuum.v1
Mi Robot Mop 3C	B106CN	ijai.vacuum.v18
Xiaomi Smart Plug 2 Euro	ZNCZ302KK	cuco.plug.v2eur
Mijia Smart Socket 2 China	ZNCZ07CM	chuangmi.plug.212a01

Supported zigbee/ble devices

Device support	Gateway 2	Multimode Gateway	Multimode Gateway 2	Aqara Hub E1
Aqara Vibration Sensor DJT11LM	yes	yes	yes	yes

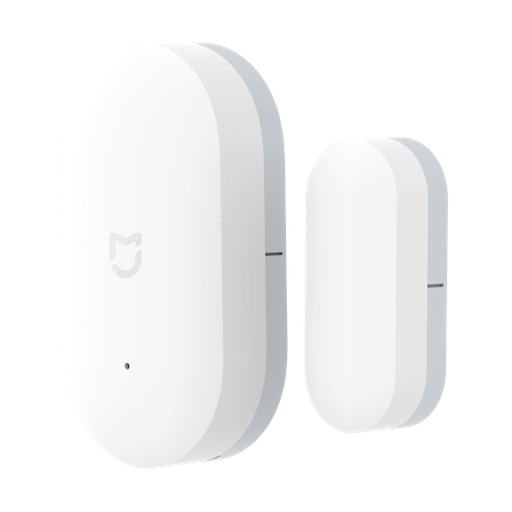

Xiaomi Door/Window Sensor MCCGQ01LM	yes	yes	yes	yes
Xiaomi Door/Window Sensor 2 MCCGQ02HL	no	yes	yes	no
Aqara Door/Window Sensor MCCGQ11LM	yes	yes	yes	yes

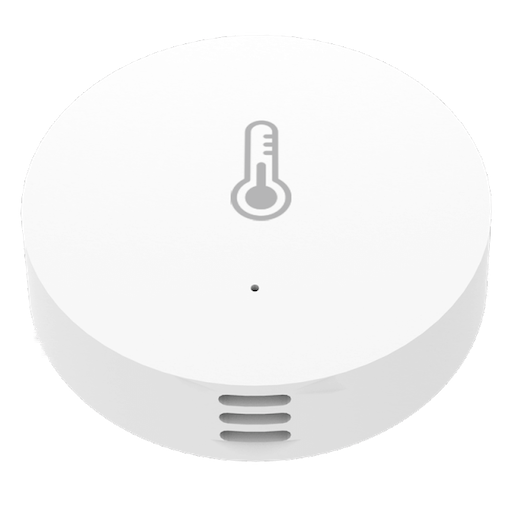

Xiaomi TH Sensor WSDCGQ01LM	yes	yes	yes	yes
Xiaomi TH Sensor 2 LYWSD03MMC	no	yes	yes	no

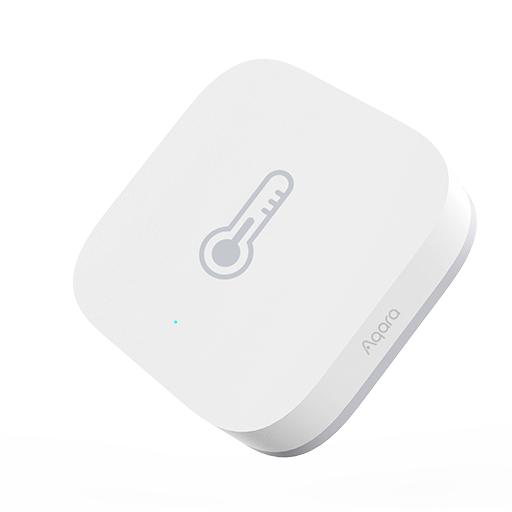

Aqara TH Sensor WSDCGQ11LM	yes	yes	yes	yes
Aqara Water Leak Sensor SJCGQ11LM	yes	yes	yes	yes

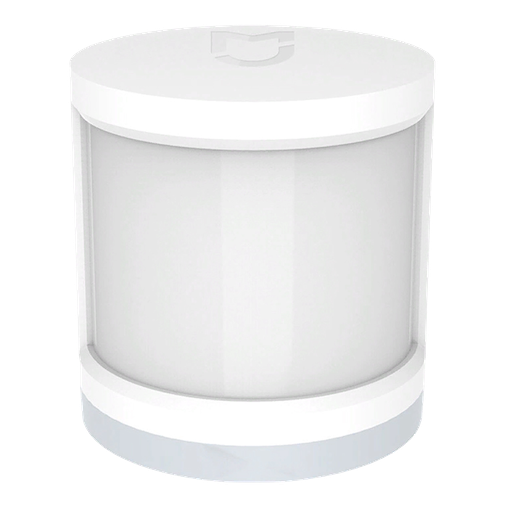

Xiaomi Motion Sensor RTCGQ01LM	yes	yes	yes	yes
Xiaomi Motion Sensor 2 RTCGQ02LM	no	yes	yes	no
Aqara Relay T1 EU (with N) SSM-U01	no	yes	yes	yes
Aqara Relay CN LLKZMK11LM	no	yes	yes	yes
Aqara Opple Switch (2 buttons) WXCJKG11LM	no	yes	yes	yes
Aqara Opple Switch (4 buttons) WXCJKG12LM	no	yes	yes	yes

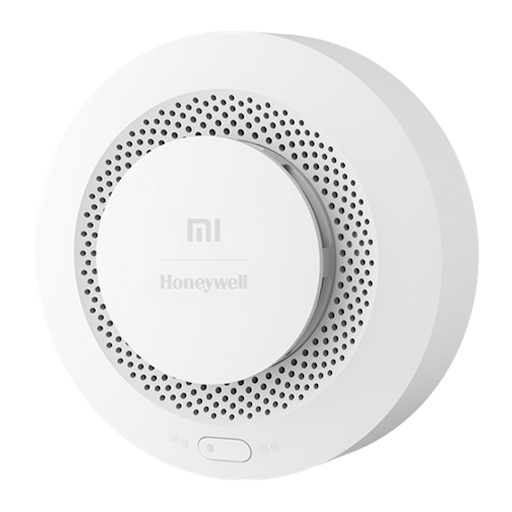

Honeywell Smoke Sensor JTYJ-GD-01LM/BW	yes	yes	yes	yes
Honeywell Smoke Alarm JTYJ-GD-03MI	no	yes	yes	no
Xiaomi Wireless Button WXKG01LM	yes	yes	yes	yes
Xiaomi Plug CN ZNCZ02LM	yes	yes	yes	yes
Aqara Double Wall Switch (no N) QBKG03LM	yes	no	no	no
Aqara Double Wall Button CN WXKG02LM	yes	no	no	no
Aqara Cube EU MFKZQ01LM	yes	no	no	no

Installation

via nuget package manager

Install-Package MiHomeLib

or

dotnet add package MiHomeLib

or install via GitHub packages

Setup Xiaomi Gateway 2

Before using this library you should setup development mode on your gateway, instructions how to do this.
This mode allows to work with the gateway via UDP multicast protocol.

Warning 1: If you bought a newer revision of Xiaomi Gateway 2 (labels in a circle)

It could be possible that ports on your gateway required for UDP multicast traffic are closed.
Before using this library ports must be opened. Check this instruction.

Warning 2: Mi Home Gateway uses udp multicast for messages handling, so your app must be hosted in the same LAN as your gateway. If it is not you have to use multicast routers like udproxy or igmpproxy or vpn bridging.

Warning 3: If your app is running on windows machine, make sure that you disabled virtual network adapters like VirtualBox, Hyper-V, Npcap, pcap etc. Because these adapters may prevent proper work of multicast traffic between your machine and gateway

Setup Xiaomi Multimode Gateway (same for Multimode Gateway 2)

Before using this library:

1. Open telnet on your gateway
2. Expose MQTT broker to the world
3. Extract token to work with your gateway

The easisest way is to setup/configure this HA integration (it does all aforementioned things automatically).

The way of warrior:

1. Enable telnet on your gateway
2. Download this openmiio_agent and upload it to your gateway (for example to /data/openmiio_agent) via telnet
3. Login to your gateway via telnet telnet <gateway ip> 23 (login: admin or root, pwd: empty)
4. Kill embedded mosquitto mqtt broker and run openmiio_agent (it will expose mqtt port 1883 to the world) kill -9 <pid of mosquitto> && /data/openmiio_agent mqtt &
5. Check that mosquitto is binded to 0.0.0.0 1883 netstat -ntlp | grep mosquitto
6. Extract token instructions

Setup Aqara Hub E1 Gateway

Before using this library you need:

1. Open telnet on your gateway
2. Find out device id (did) of the gateway
3. Find ip and token of the gateway

More details in the project's WIKI

Basic scenarios

Get all devices in the network from the Xiaomi Gateway 2

public static void Main(string[] args)
{
    // gateway sid is optional, use only when you have 2 or more gateways in your LAN
    // using var gw2 = new XiaomiGateway2("ip", "token", "gateway sid");
    using var gw2 = new XiaomiGateway2("<gateway ip>", "<gateway token>");
    {
        gw2.OnDeviceDiscoveredAsync += d =>
        {
            Console.WriteLine(d.ToString());
            return Task.CompletedTask;
        };

        gw2.DiscoverDevices();
    }
}

Get all devices in the network from the Xiaomi Multimode Gateway

public static void Main(string[] args)
{
    using var multimodeGw = new MultimodeGateway("<gateway ip>", "<gateway token>", "<did>");
    {
        multimodeGw.OnDeviceDiscoveredAsync += d =>
        {
            Console.WriteLine(d.ToString());
            return Task.CompletedTask;
        };

        multimodeGw.DiscoverDevices();
    }
}

Get all devices in the network from the Xiaomi Multimode Gateway 2 Global

public static void Main(string[] args)
{
    using var multimodeGw2 = new MultimodeGateway2Global("<gateway ip>", "<gateway token>", "<did>");
    {
        multimodeGw2.OnDeviceDiscoveredAsync += d =>
        {
            Console.WriteLine(d.ToString());
            return Task.CompletedTask;
        };

        multimodeGw2.DiscoverDevices();
    }
}

Get all devices in the network from the Xiaomi Multimode Gateway 2 China

public static void Main(string[] args)
{
    using var multimodeGw2 = new MultimodeGateway2China("<gateway ip>", "<gateway token>", "<did>");
    {
        multimodeGw2.OnDeviceDiscoveredAsync += d =>
        {
            Console.WriteLine(d.ToString());
            return Task.CompletedTask;
        };

        multimodeGw2.DiscoverDevices();
    }
}

Get all devices in the network from the Aqara Hub E1 Gateway

public static void Main()
{
    using var gw = new AqaraHubE1China("ip", "token", "did");
    {
        gw.OnDeviceDiscoveredAsync += d =>
        {
            Console.WriteLine(d.ToString());
            return Task.CompletedTask;
        };

        gw.DiscoverDevices();
    }
    Console.ReadLine();
}

Documentation

Check detailed documentation on how to work with different devices in the project's WIKI

Contribution

Your pull requests are welcome to replenish the database of supported devices
